电缆的结构、特性

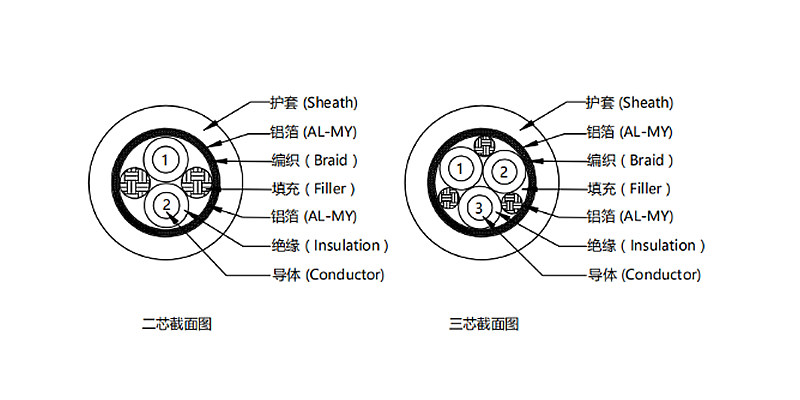

结构Product description | |
导体Conductor | 材质Material:裸铜 Bare Copper |
绝缘Insulation | 材质Material:TPE 颜色color:红Red,黑Black,棕Brown,蓝Blue,黄/绿Yellow/Green |
填充Filler | 材质Material: PP Net |
绕包Core wrap | 材质Material: AL-Mylar |
编织Shield | 材质Materia: Tinned copper |
绕包Core wrap | 材质Materia:无纺布NON-WOVEN FABRICS |
护套Jacket | 材质Materia:TPE 颜色color:橙Orange |
电缆特性 | |
额定温度Rated temperature | -40~125℃ |
额定电压Rated Voltage | AC600V/DC900V |
最小弯曲半径Min | ≥5OD |
耐压Dielectric Voltage | 5KV/5min,No Breakdown |
低温弯曲Cold Bending | -40±2.0℃x4h.,No cracking |
热冲击Hot Shock | 150±3℃x240h, No cracking |
耐油Oil Resistance | 50±3℃/20h,,Rate of OD change≤30%, no cracking |
环保要求Environmental Requirements | RoHS and REACH |
产品综合结构
线材规格 mm2 | 导体 | 绝缘 | 屏蔽(≥85%) | 护套 | |||
conductor | insulation | Shielded(≥85%) | Jacket | ||||
导体结构 n/mm | 绞合外径 mm | 电阻 20℃时Ω/Km | 绝缘外径 mm | 绕包 | 编织结构 n/n/mm | 外径 mm | |
wire type(mm2) | Conductor n/mm | Stranding Dia. mm | MAX.Cond. (Ω/Km,20℃) | Insulation Dia. mm | Core wrap | Construction n/n/mm | Cable Dia. mm |
EVP-2*2.5 | 77/0.20 | 2.05 | 7.60 | 3.60±0.15 | 16/8/0.15 | 11.5±0.30 | |
EVP-2*4.0 | 133/0.20 | 2.70 | 4.71 | 4.40±0.20 | 24/8/0.15 | 12.0±0.30 | |
EVP-2*6.0-1 | 190/0.20 | 3.40 | 3.14 | 4.70±0.20 | 24/9/0.15 | 12.5±0.30 | |
EVP-2*6.0-2 | 190/0.20 | 3.40 | 3.14 | 5.20±0.20 | 24/8/0.20 | 14.5±0.40 | |
EVP-2*1.0-1 | 323/0.20 | 4.70 | 1.82 | 5.90±0.20 | 24/9/0.15 | 15.0±0.40 | |
EVP-2*1.0-2 | 323/0.20 | 4.70 | 1.82 | 6.70±0.20 | 24/8/0.20 | 17.5±0.40 | |
EVP-3*2.5 | 77/0.20 | 2.05 | 7.60 | 3.60±0.15 | 24/8/0.15 | 12.0±0.30 | |
EVP-3*4.0 | 133/0.20 | 2.70 | 4.71 | 4.40±0.20 | 24/9/0.15 | 14.0±0.40 | |
EVP-3*6.0 | 190/0.20 | 3.40 | 3.14 | 5.20±0.20 | 24/8/0.20 | 15.4±0.40 |
1.实际产品以规格书为准。
2.可按要求定制其他规格尺寸线材。
3.绝缘材质可选辐照料,需定制。
4.最终解释权归本公司。
