产品说明
1.额定温度:70ºC
2.额定电压:300/300V
3.执行标准: JB/T 8734.5
4.导体使用绞合0.08-1.5MM2 裸铜丝
5. 绝缘,护套采用聚氯乙烯
6.产品符合欧盟RoHS要求

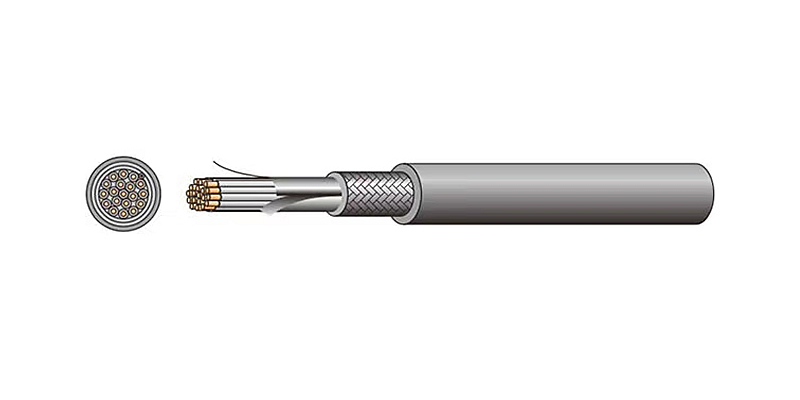

产品综合结构
Conductor | Insulation | Shield | Jacket | Overall Diameter | 最大导体电阻 | 标准长度 | ||
size | NO./mm | mm | mm | mm | 完成外径(mm) | |||
规格 | 线数/线径 | 绝缘厚度 | 单丝直径 | 护套厚度 | MIN. | MAX. | ||
0.08*2C | 7/0.12 | 0.4 | 0.10 | 0.4 | 3.2 | 4.7 | 247 |
200 |
2.4*3.5 | 2.9*4.2 | |||||||
0.12*2C | 7/0.15 | 0.4 | 0.10 | 0.6 | 3.7 | 4.9 | 158 | |
2.8*4.0 | 3.4*4.9 | |||||||
0.2*2C | 12/0.15 | 0.4 | 0.10 | 0.6 | 4.1 | 5.3 | 92.3 | |
3.0*4.4 | 3.6*5.3 | |||||||
0.3*2C | 16/0.15 | 0.5 | 0.15 | 0.6 | 4.8 | 6.2 | 69.2 | |
3.5*5.1 | 4.2*6.2 | |||||||
0.4*2C | 23/0.15 | 0.5 | 0.15 | 0.6 | 5.1 | 6.6 | 48.2 | |
3.6*5.4 | 4.4*6.6 | |||||||
0.5*2C | 28/0.15 | 0.5 | 0.15 | 0.6 | 5.3 | 6.8 | 39.0 | |
3.7*5.6 | 4.5*6.8 | |||||||
0.75*2C | 42/0.15 | 0.5 | 0.15 | 0.6 | 5.8 | 7.4 | 26.0 | |
4.0*6.1 | 4.8*7.4 | |||||||
1.0*2C | 32/0.20 | 0.6 | 0.15 | 0.6 | 6.4 | 8.2 | 19.5 | |
4.3*6.7 | 5.2*8.3 | |||||||
1.5*2C | 48/0.20 | 0.6 | 0.15 | 0.8 | 7.3 | 9.2 | 13.3 | |
4.9*7.6 | 6.0*9.3 | |||||||
0.12*3C | 7/0.15 | 0.4 | 0.10 | 0.6 | 3.9 | 5.1 | 158 | |
0.2*3C | 12/0.15 | 0.4 | 0.15 | 0.6 | 4.5 | 5.8 | 92.3 | |
0.3*3C | 16/0.15 | 0.5 | 0.15 | 0.6 | 5.1 | 6.5 | 69.2 | |
0.4*3C | 23/0.15 | 0.5 | 0.15 | 0.6 | 5.4 | 6.9 | 48.2 | |
0.5*3C | 28/0.15 | 0.5 | 0.15 | 0.6 | 5.6 | 7.1 | 39.0 | |
0.75*3C | 42/0.15 | 0.5 | 0.15 | 0.6 | 6.1 | 7.8 | 26.0 | |
1.0*3C | 32/0.20 | 0.6 | 0.15 | 0.8 | 7.2 | 9.1 | 19.5 | |
1.5*3C | 48/0.20 | 0.6 | 0.20 | 0.8 | 8.0 | 10.0 | 13.3 | |
0.12*4C | 7/0.15 | 0.4 | 0.15 | 0.6 | 4.5 | 5.8 | 158 | |
0.2*4C | 12/0.15 | 0.4 | 0.15 | 0.6 | 4.9 | 6.2 | 92.3 | |
0.3*4C | 16/0.15 | 0.5 | 0.15 | 0.6 | 5.5 | 7.0 | 69.2 | |
0.4*4C | 23/0.15 | 0.5 | 0.15 | 0.6 | 5.9 | 7.5 | 48.2 | |
0.12*5C | 7/0.15 | 0.4 | 0.15 | 0.6 | 4.8 | 6.2 | 158 | |
0.2*5C | 12/0.15 | 0.4 | 0.15 | 0.6 | 5.3 | 6.7 | 92.3 | |
0.3*5C | 16/0.15 | 0.5 | 0.15 | 0.6 | 6.0 | 7.6 | 69.2 | |
0.4*5C | 23/0.15 | 0.5 | 0.15 | 0.6 | 6.4 | 8.1 | 48.2 | |
0.12*6、7C | 7/0.15 | 0.4 | 0.15 | 0.6 | 5.2 | 6.6 | 158 | |
0.2*6、7C | 12/0.15 | 0.4 | 0.15 | 0.6 | 5.7 | 7.2 | 92.3 | |
0.3*6、7C | 16/0.15 | 0.5 | 0.15 | 0.6 | 6.5 | 8.2 | 69.2 | |
0.4*6、7C | 23/0.15 | 0.5 | 0.15 | 0.8 | 7.3 | 9.2 | 48.2 | |
0.12*8C | 7/0.15 | 0.4 | 0.15 | 0.6 | 5.7 | 7.3 | 158 | |
0.2*8C | 12/0.15 | 0.4 | 0.15 | 0.6 | 6.3 | 7.9 | 92.3 | |
0.3*8C | 16/0.15 | 0.5 | 0.15 | 0.6 | 7.2 | 9.1 | 69.2 | |
0.4*8C | 23/0.15 | 0.5 | 0.15 | 0.8 | 8.1 | 10.1 | 48.2 | |
0.12*9C | 7/0.15 | 0.4 | 0.15 | 0.6 | 6.1 | 7.8 | 158 | |
0.2*9C | 12/0.15 | 0.4 | 0.15 | 0.8 | 7.1 | 9.0 | 92.3 | |
0.3*9C | 16/0.15 | 0.5 | 0.15 | 0.8 | 8.2 | 10.2 | 69.2 | |
0.4*9C | 23/0.15 | 0.5 | 0.15 | 0.8 | 8.7 | 10.9 | 48.2 | |
0.12*10C | 7/0.15 | 0.4 | 0.15 | 0.6 | 6.4 | 8.1 | 158 | |
0.2*10C | 12/0.15 | 0.4 | 0.15 | 0.8 | 7.4 | 9.3 | 92.3 | |
0.3*10C | 16/0.15 | 0.5 | 0.20 | 0.8 | 8.7 | 10.9 | 69.2 | |
0.4*10C | 23/0.15 | 0.5 | 0.20 | 0.8 | 9.3 | 11.6 | 48.2 | |
0.12*12C | 7/0.15 | 0.4 | 0.15 | 0.6 | 6.6 | 8.3 | 158 | |
0.2*12C | 12/0.15 | 0.4 | 0.15 | 0.8 | 7.6 | 9.6 | 92.3 | |
0.3*12C | 16/0.15 | 0.5 | 0.20 | 0.8 | 9.0 | 11.2 | 69.2 | |
0.4*12C | 23/0.15 | 0.5 | 0.20 | 0.8 | 9.6 | 11.9 | 48.2 |
